Shock Pad

The shock pad is a resilient layer between the base and the artificial grass. It is used to provide a greater degree of comfort to players, and to give the playing surface a greater softness.

Shock pads are the ultimate way to add safety and resilience to the artificial grass surface. Arturf artificial grass shock pad provides comfortable and natural cushioning. Ideal for play areas, football field (especially for non-infill football turf), putting green…

Send Enquiry

Description

Ultimate Way To Add Safety And Resilience

Shock pads are the ultimate way to add safety and resilience to the artificial grass surface. A shock pad increases the playability and safety of an artificial turf pitch and keeps the surface at a top level for longer. Our artificial grass shock pad provides a comfortable and natural cushioning.

Truly Versatile

In the sports industry, shock pads are often referred to as an “insurance policy.” According to FIFA-endorsed regulations, shock-attenuation testing is recommended for every football field. Arturf shock pad is the best additional layer for non-infill football artificial grass. For play areas, It will assure safety for your kids.

Arturf shock pad is ideal for most artificial grass surfaces including football, soccer, rugby, hockey, playground, multi-purpose, putting green…

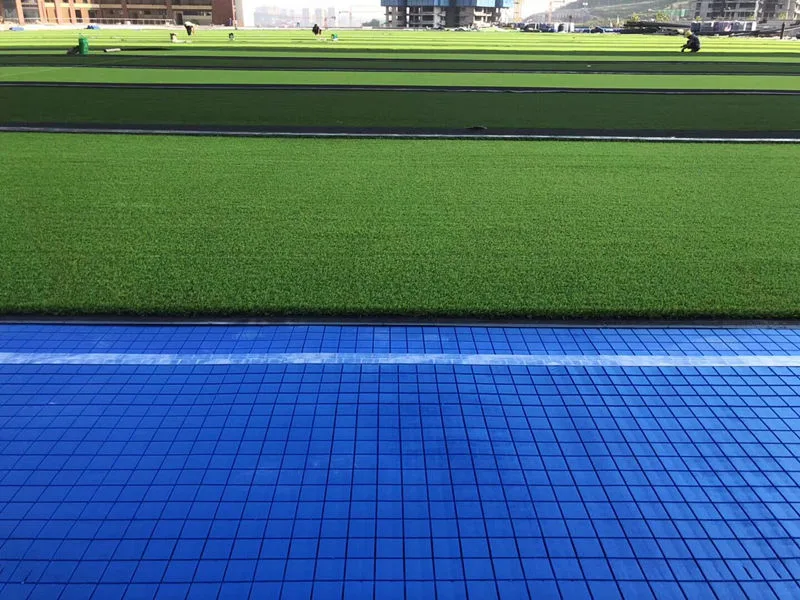

Easy & Fast Installation

Our foam shock pad underlay is very light in weight and the handling is easy. Two persons can cover a sports field in one day. Neither special machinery nor specially trained staff is required for the installation. Roll length can be tailored to the field size, which reduces waste and saves the labor force.

Other Features

1. Excellent shock absorption and ball rebound.
2. The material doesn’t absorb water, which makes the installation will not be affected by bad weather.
3. Since the edges of our shock pad underlay are cut neatly, all the joints can be easily and accurately welded/jointed with adhesive tape.
4. The unique design offers excellent water drainage and avoids swelling or shrinking and thus the dimension always remains stable.
5. Never rot or pulverize. Long usage life.
6. Stable shock absorption keeps the system’s performance stable for a long time.

Pattern Options

Windmill

Application: Outdoor / Indoor
Keywords: One of the most popular shock pads on the market

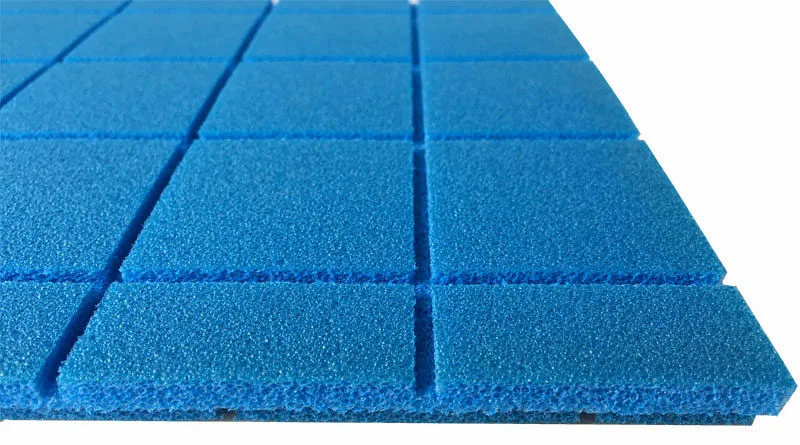

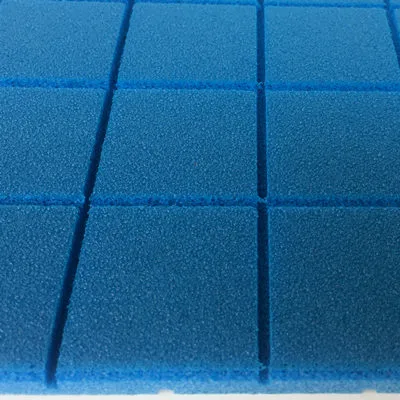

Cross

Application: Outdoor / Indoor
Keywords: Ideal for non-infill and infilled artificial grass, Versatile

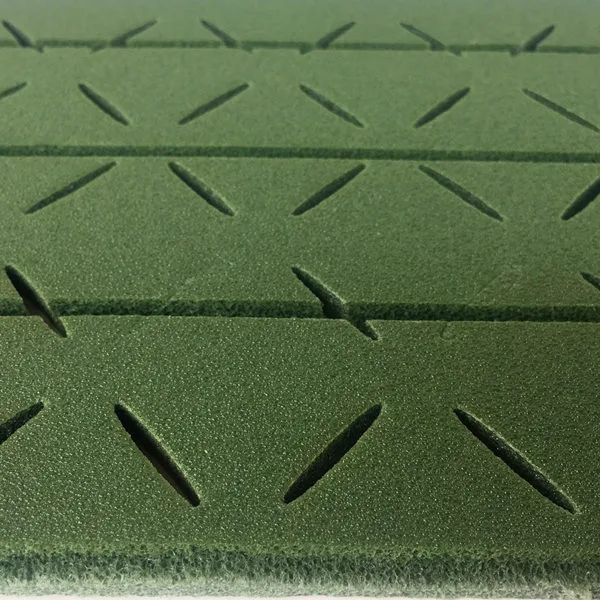

Windmill & notch

Application: Outdoor / Indoor
Keywords:Super durable, Great resilient

Windmill

Application: Outdoor / Indoor
Keywords: Super resilience, super-fast drainage, outdoor

Thickness & Material Density

We can produce 10mm-70mm thickness shock pads. The most applied thickness for football fields is 10mm or 15mm.

Our standard material density options are 30kg/m³ and 50kg/m³. We can produce with 70kg/m³ or other density materials at a higher MOQ.
